RFIR/MIR OMR tests reader
An Android app that reads hand-marked exam sheets with OMR, the user reviews them, and automatically fills a Moodle quiz. Built with two AI agents.
Why build it
My partner was preparing for one of the Spanish IR exams (MIR, BIR, RFIR and the rest), which thousands of students take every year. Preparation means weekly mock exams: 210 multiple-choice questions, four and a half hours, answered on a printed sheet. The prep academy scores them through a Moodle quiz, so after every mock exam the 210 answers had to be typed in again, one by one, on a phone or tablet. That took 20 to 30 minutes, right after four and a half hours of exam.
I built an Android app that removes that step. You photograph the answer sheet, the app reads all 210 answers, you confirm every one of them on screen, and the app fills the Moodle quiz. After you submit, it reads Moodle’s corrections back and computes the score. For practice exams outside Moodle, it scores the answers locally against a bundled answer key.
The whole process now takes about 5 minutes, and most of that is the review. The bigger change is harder to measure: after a long exam, there is one less tedious thing to get right.
The project had two goals. The first was the app. The second was personal: I used it as my first fully agent-driven project, where AI agents wrote the code and my job was to design, constrain and verify. This post covers the algorithm, the review process, the Moodle integration, and how that development process worked. The code is in the public repository
The problem: ink that changes meaning

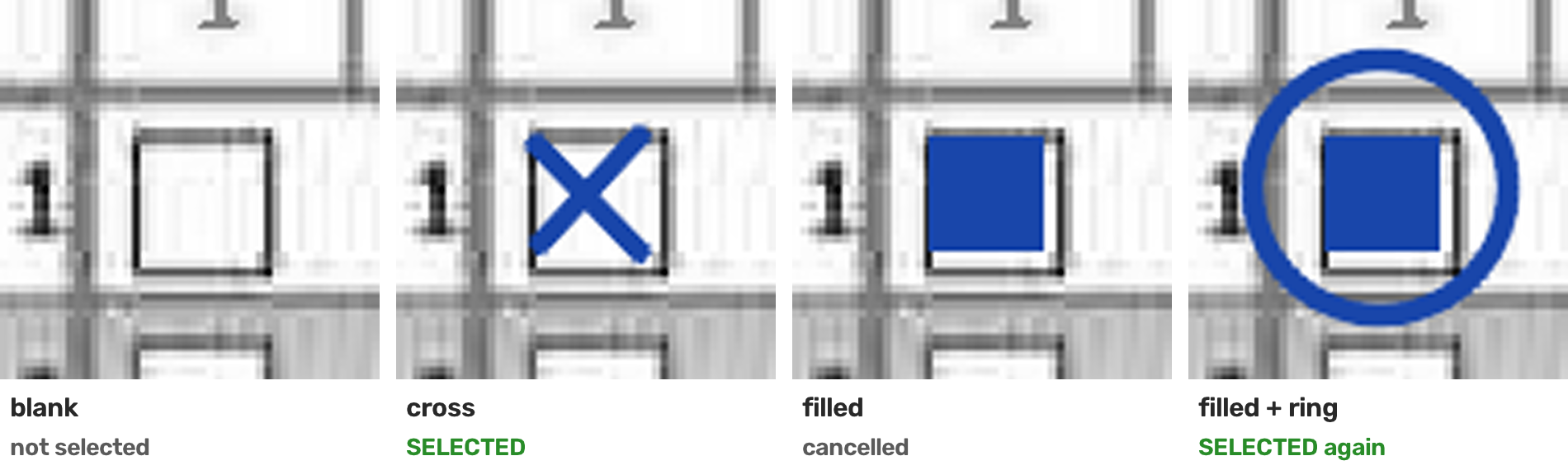

Each question has four boxes, one per option. Students mark them by hand, following a convention set by the exam board:
| Cell state | Ink | Meaning |
|---|---|---|
| blank | none | not selected |
| cross (✕) | low | selected |
| filled square | high | cancelled, not selected |
| filled square with a ring around it | highest | selected again |
The ink increases from top to bottom, but the meaning alternates. This breaks the standard optical mark recognition approach. Almost every OMR system decides whether a box is marked by how dark it is: more ink means more selected. Here, a cancelled answer is the darkest box in its row, so any intensity comparison picks it as the most confident answer. Intensity thresholding is not only less accurate on this sheet, it gives inverted results.
So every decision has to be structural. Are there two crossing strokes? Is the box solidly filled? Is there a ring drawn outside the box?
The hardest case is filled versus filled with a ring. Both are high-ink, they mean opposite things, and they differ only by a thin ring in the space around the box. A crop that is a few pixels too tight, or a registration error of a fraction of a row, removes that ring from the image. The cell still looks like a clean, confident “filled”, and the error is silent. For that reason, every cell crop is deliberately wider than the box itself.
The other constraints came from the user:
- Phone only. My partner has an Android phone and a tablet, no laptop, and is not technical. Anything that needs a terminal or configuration is out.
- Hand-held photos. Different phones, resolutions, angles and lighting.
- One attempt. Each Moodle quiz allows a single submission, and Moodle autosaves. Any fill of the real form is written to the server within about a minute, so there is no safe way to try something out on it.
- Very little data. I started with 4 labelled sheets, so training an ML model was not an option.
From photo to answers

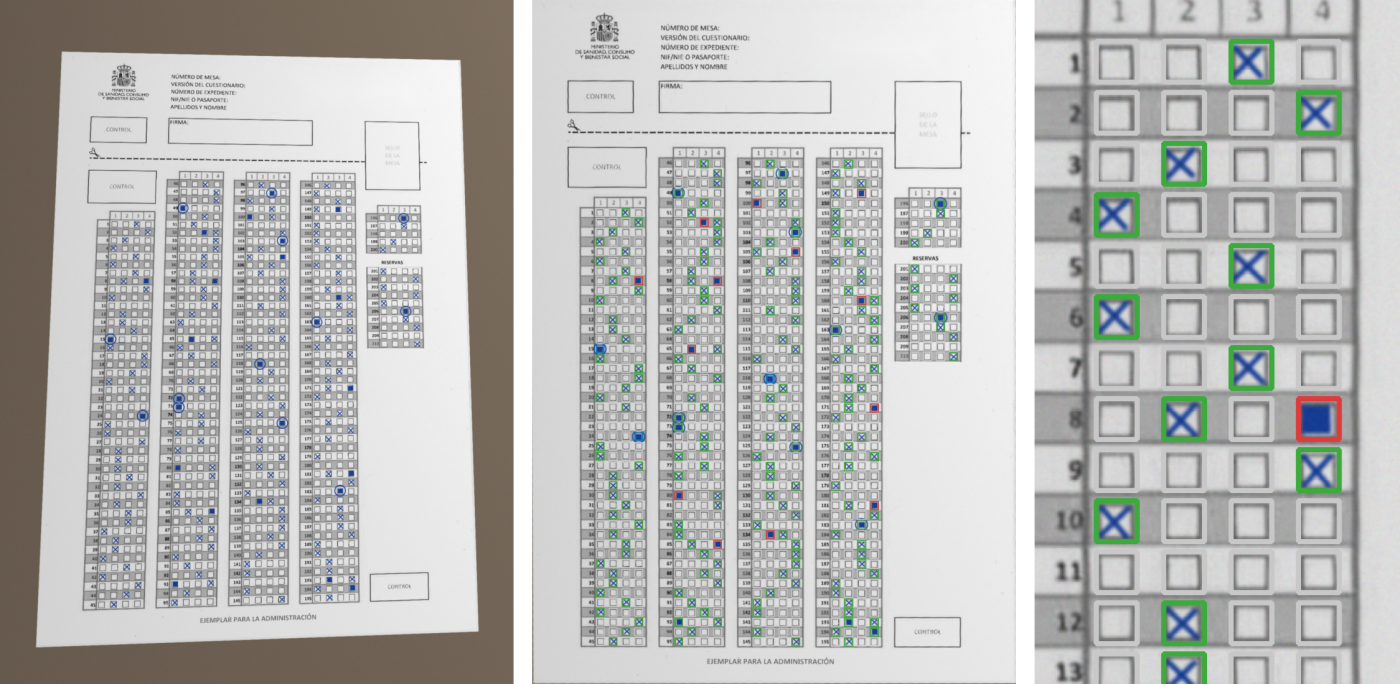

The pipeline has four stages, each with a narrow interface:
photo → Registrar → GridExtractor → CellClassifier → AnswerResolver → 210 answers
Each stage uses only the previous stage’s output. That keeps the sample-dependent tuning, such as classifier thresholds and registration parameters, behind interfaces that can change without touching the rest.
Template. The reference frame comes from a blank scan of the printed sheet. The box outlines are detected with a contour-based shape filter and fitted to a parametric lattice per block, with one row pitch and one column pitch. The only hand-written knowledge is which x-range and which question range belong to each block; no individual cell position is hard-coded. The printed lattice is very regular: the row pitch measures 50.000 px, consistent within 0.06% across blocks. If a block’s detections don’t produce exactly the expected number of rows, calibration fails loudly instead of shifting the grid.
Registration. The photo is aligned to the template in two stages. The first is SIFT features, a ratio test and RANSAC. I tried ORB first, but it could not bridge the scale gap between a 300 DPI scan and a phone photo with about a third of that pixel density. SIFT’s coarse match has a subtler problem: the answer grid is hundreds of identical boxes, so the ratio test correctly discards most of it, and only the page header produces unique matches. The homography is then fitted on a thin strip at the top and extrapolated over the grid, so the error grows toward the bottom of the page.
The second stage fixes this by using the grid itself. It warps the photo with the current estimate, re-detects box outlines across the whole sheet, pairs each detection with its nearest lattice point, and refits on hundreds of correspondences. This repeats a few times with a tightening distance gate. The residual drops from 0.19–0.31 of a row pitch to 0.05–0.07. If the refit never finds enough correspondences, registration keeps the coarse estimate and reports that it did.
Classification. The classifier never looks at grayscale intensity. Pen ink on these sheets is strongly blue, while the printed lines and text are neutral, so each crop is white-balanced (gray-world) and turned into a blue-ink mask. Three structural questions follow:
- Is there a mark? The ink fraction inside the box, after eroding a thin band at the edge so the printed border can’t pass as ink.
- Cross or fill? A cross follows the two diagonals, so the regions far from both diagonals stay mostly empty; a fill covers them. A second check on the box corners catches bold crosses. A cell is a fill only when both checks agree.
- Fill or fill with a ring? The area between the box and the widened crop’s edge is split into angular wedges around the box centre. A real ring puts ink in a majority of wedges. Ink bleeding in from a neighbouring row only reaches one or two, which an earlier single ink-density measure could not tell apart.
Confidence is the margin to the nearest decision boundary, scaled by how much the two neighbouring classes actually overlap there on real data. A confidence of 1 means “outside the measured overlap”, not just “far from zero”.
Resolution. The AnswerResolver turns the four cell states of a question into an answer. One selected cell gives that option. None gives 0, which is correct whether the question was left blank or every mark was cancelled. Two or more, or low confidence, gives Ambiguous. It is a pure function with no image input and only 4⁴ = 256 possible inputs, so it is tested exhaustively.
Accuracy. I split accuracy by the true answer, because 0 is rare: a system that never outputs 0 still scores around 90% overall.
| Split | 0 correct | 1–4 correct | Ambiguous | Confidently wrong |
|---|---|---|---|---|
| Development (7 sheets) | 100% (110/110) | 91.6% (1142/1247) | 113 | 105 |
| Held-out (4 sheets) | 100% (44/44) | 98.3% (705/717) | 79 | 12 |
Cancellations and blanks are never confused with a real answer. Most of the development-set errors come from one sheet marked in a pen colour the blue mask cannot see. That is an accepted limitation, and the review step below exists for cases like it.
On the phone. The Python code is the readable reference implementation. The app runs a Kotlin port on OpenCV’s Java bindings, entirely on the device. The two are kept in agreement by the same 256-case fixture for the resolver and a differential test that runs both pipelines on real sheets and reports mismatch counts. When they disagree, the Python side is right by definition, because every tuning decision was measured there.
Human review as the guarantee
With a handful of labelled sheets, there is no way to show that the pipeline is 100% accurate, and in an exam every wrong answer costs points. No confidence predictions are provided to the user: it is not reliable to calibrate with such little test samples. So the guarantee cannot come from the model. It needs a human.

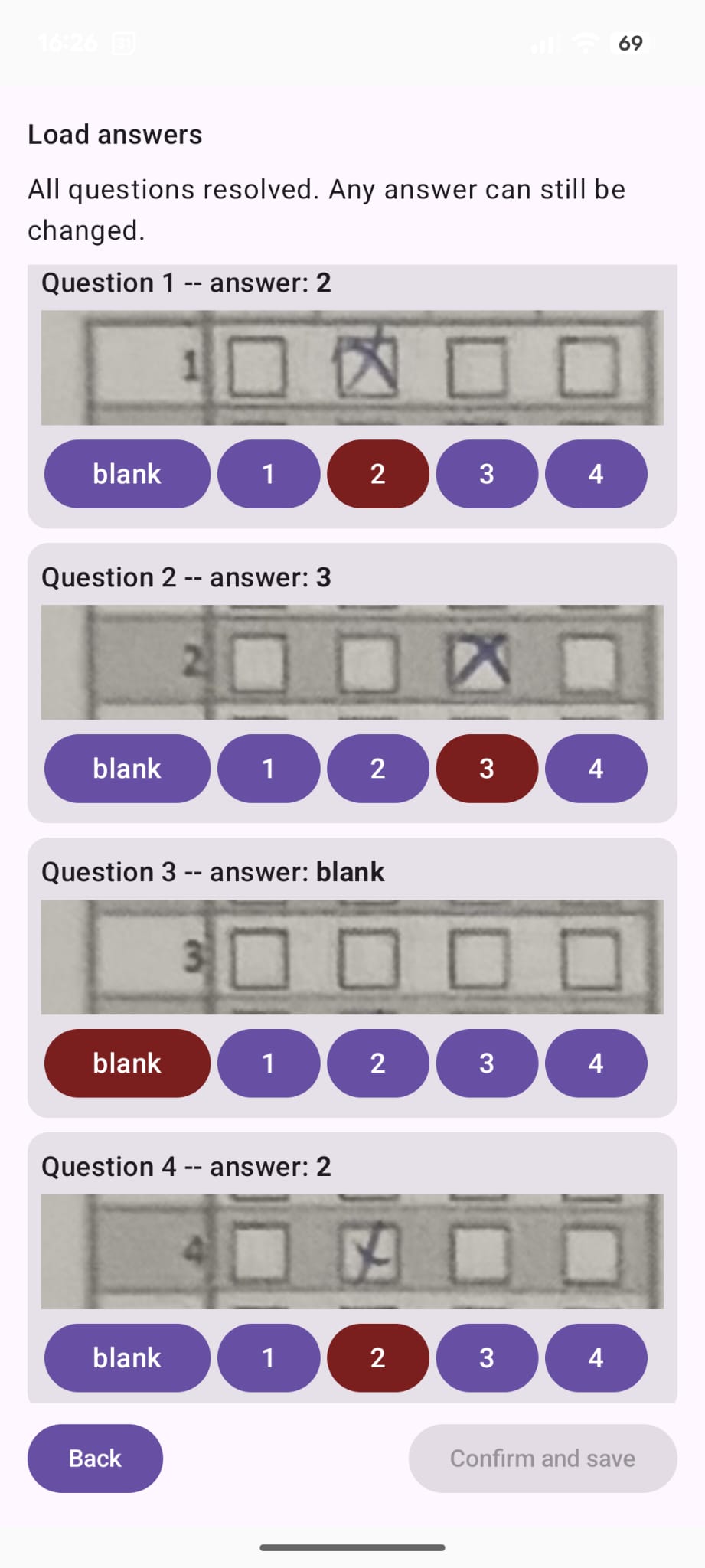

The review screen shows all 210 questions crops in order. Below each crop there are buttons for each possible answer. The selected answer is highlighted such that reviewing is trivial: if the highlighted answer is not below the correct box the user will see it instantly. Saving is enabled only after scrolling through the whole list to ensure the user review them.
This sets what the classifier should optimize. The person looks at every question anyway, so the cost is the total number of corrections: confidently wrong answers plus ambiguous ones. Pushing the confidence threshold up to remove the last confidently wrong answers turns many correct readings into ambiguous ones. On the corpus, the threshold that brought confident errors to zero produced about five times more total corrections than the one I shipped.
The review also produces data. When a review is confirmed, the app saves the photo, the pipeline’s original prediction and the confirmed answers on the device, and a Share button exports them. The difference between prediction and confirmation is a labelled record of exactly where the pipeline failed, at no extra cost. That is how the corpus grew from 4 to 11 sheets: 7 for tuning and 4 held out, evaluated only once.
Scoring: Moodle and local
Filling the quiz. The academy’s Moodle quiz opens inside the app, in a WebView logged into the user’s own account. The code that touches the page is JavaScript injected into it, which means the same file runs in a desktop browser against saved copies of the page. That is how the fill logic was tested without a phone or the live exam.
It works in three calls. probe checks the page’s shape before writing anything: questions numbered from 1 to 210, each with a “clear my choice” option and a gap-free run of answer options. fill sets the 210 answers and immediately reads every question back. verify reads them back again later, after Moodle’s autosave may have changed the page. The result is not a boolean, because a silent partial fill across 210 questions looks exactly like success. It has three states: refused (the page was not what we expected, and nothing was written), partial (these specific questions did not take; finish them by hand), and complete.
Moodle has traps that a single test page would not catch. Each field’s name contains an id that changes on every attempt, so the code reads it from the page every time, and a second test page that differs only in that number exists to catch a hard-coded value. A blank answer is not an untouched question; it is an explicit click on Moodle’s “clear my choice”.
The app never submits. No code path submits the form, and a test checks the source to enforce it. Due to interface limitations, the app has buttons that press Moodle’s own Finish and Submit buttons for the user, but one human press is exactly one click on one named Moodle button, and nothing is chained or triggered automatically.

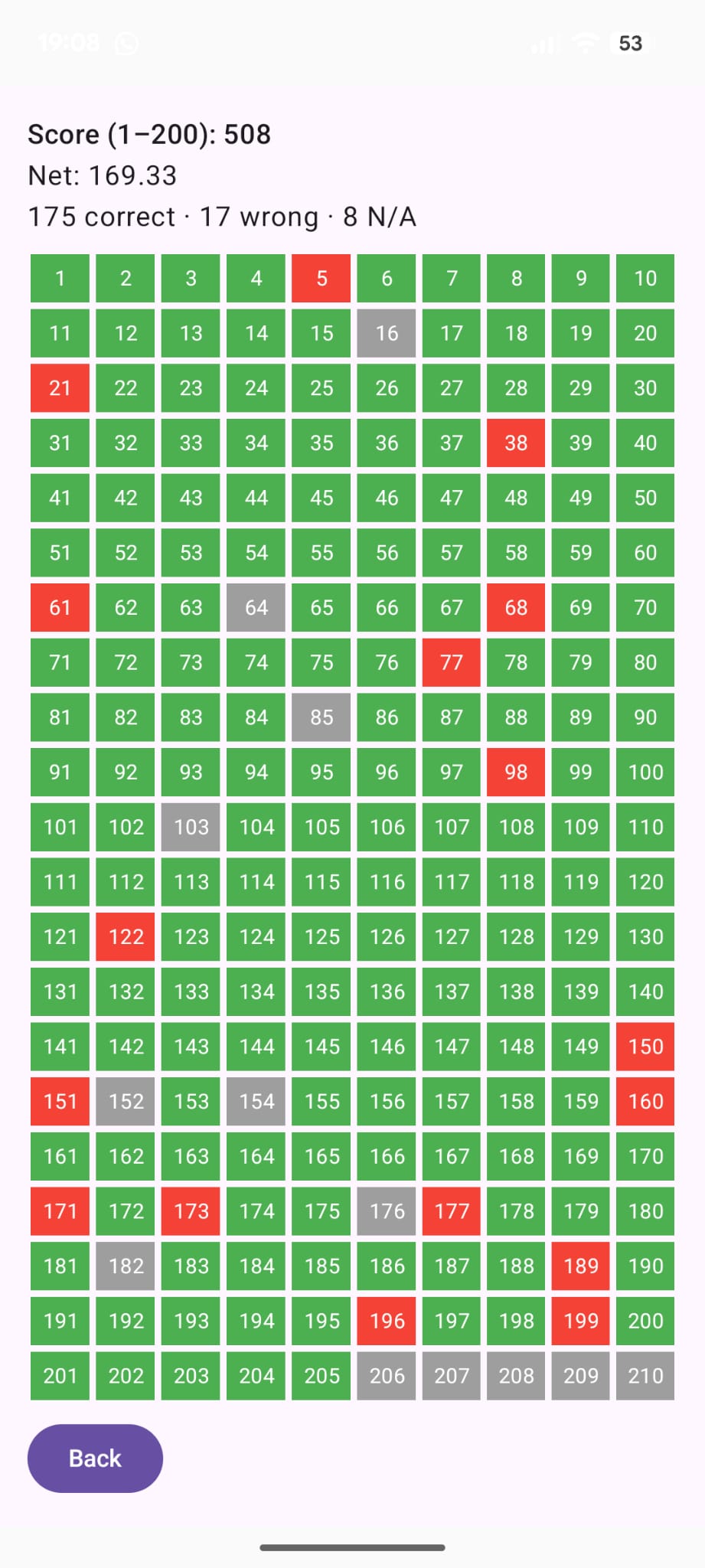

Reading the result. After submission, Moodle shows each question as correct, wrong or unanswered. The app reads only those marks, from element ids and class names, and computes the score the exam uses: +3 per correct answer, −1 per wrong one, 0 per unanswered, over questions 1–200, plus the net score (a third of the raw score).
Scoring locally. For a set of official mock exams without Moodle form, the answer keys ship with the app. They were extracted from the answer-key PDFs provided by the prep academy for a set of official mock tests and checked by hand once, offline. The app applies the same scoring, shows a correct/wrong breakdown for all 210 questions, and handles questions annulled by the exam board by counting the reserve questions (201–210) in their place.
Built by agents
I saw this project as the right size for my first fully agent-driven build: a real user, a clear definition of done, and failure modes that are easy to state and expensive to miss. The agents wrote the code. My work was deciding what to build, and making sure what was built was correct.
The setup used two Claude Code agents with different roles:
- A planner, on my machine, working with me. Together we wrote the design documents, split the work into milestones, and maintained a written operating contract for the developer: what the problem is, which interfaces are fixed, and which rules cannot be broken.
- A developer, in a sandbox, fully autonomous. It took a task, wrote its own plan, and implemented it test-first, using the superpowers workflow (brainstorm, written plan, TDD). It worked unsupervised and reported which checks it had run and which had failed.
This moved my job from writing code to writing constraints and checks that an unsupervised agent cannot quietly get around. A few examples:
- Human review to achieve 100% accuracy The agent did not understand to importance of a small error and how the only way to ensure none was including the human.
- Stable interfaces. The four pipeline stages and the three Moodle calls were fixed. The agent could change anything behind them.
- A reference that cannot be edited to win. The Kotlin port is checked against the Python code, and when they disagree the Kotlin changes. Otherwise a failing comparison would be “fixed” by making both sides wrong in the same way.
- Human gates. The sandbox has no phone, so anything that runs on the device or renders a screen was checked by me. The agent had to say what it built and what still needed the device, never that it worked.
- Decisions stay human. Once, measurements showed that two changes to the Python reference had reduced confident errors at the cost of more total corrections. Reverting them was my call, made on the numbers, not the agent’s.
The sandbox is what made this freedom safe. The agent ran in rootless Docker with outbound network limited to an allowlist. The one capture of the logged-in exam page was hidden from the container; the agent only ever saw test pages derived from it with every piece of real text replaced. It had no credentials and could not push: the only way out of the sandbox was a git push I ran myself.
The project took one week full-time to deliver an MVP, and a few more weeks of low dedication to polish the app based on user feedback. A total of 270 commits, from an empty repository to a released app that my partner uses on real mock exams weekly.
Lessons learned
The major lesson I learned is that while coding agents are a great tool, they still struggle to plan and look at the big picture. I had to steer multiple times to properly frame the solution, acceptable trade-offs, prevent wasting time exploring useless solutions, or directly discard overcomplicated approaches. There are multiple parts of the algorithm that I think could be improved with a better design, nevertheless it is clear that they are usefull, with zero android experience in a short time I developed an MVP, and the real bottleneck was the token limit to my Claude subscription.
